Name: ASROCK B550M STEEL LEGEND AMD MOTHERBOARD - Multimedia Computer
Price: 16500.00 BDT
Availability: InStock

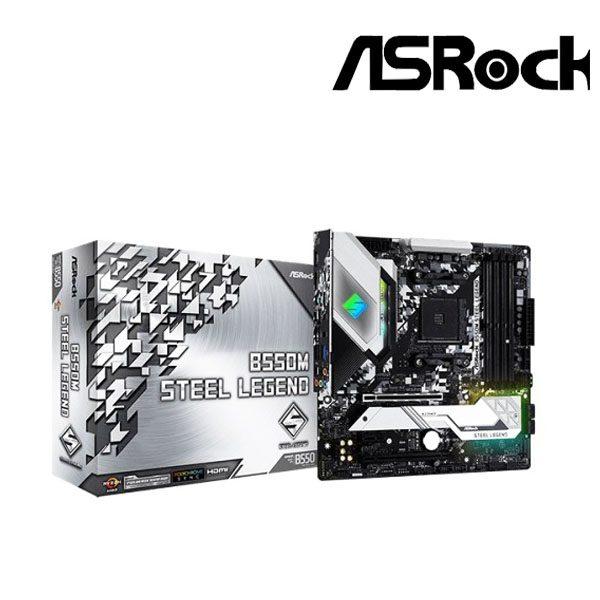

ASROCK B550M STEEL LEGEND AMD MOTHERBOARD

৳ 16,500.00

KEY FEATURES

MODEL: ASROCK B550M STEEL LEGEND
SUPPORTS 3RD GEN AMD AM4 RYZEN/ FUTURE AMD RYZEN PROCESSORS
SUPPORTS DDR4 4733+ (OC)
6 SATA3, 1 HYPER M.2, 1 M.2
10 POWER PHASE DESIGN, DR. MOS

Description

SPECIFICATION


SUPPORTED CPU	– SUPPORTS 3RD GEN AMD AM4 RYZEN / FUTURE AMD RYZEN PROCESSORS – DIGI POWER DESIGN – 10 POWER PHASE DESIGN
CHIPSET	AMD B550
BIOS	– 256MB AMI UEFI LEGAL BIOS WITH GUI SUPPORT – SUPPORTS “PLUG AND PLAY” – ACPI 5.1 COMPLIANCE WAKE UP EVENTS – SUPPORTS JUMPERFREE – SMBIOS 2.3 SUPPORT – CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP VOLTAGE MULTI-ADJUSTMENT
FORM FACTOR	-MICRO ATX FORM FACTOR: 9.6-IN X 9.6-IN, 24.4 CM X 24.4 CM – 2OZ COPPER PCB
AUDIO	– 7.1 CH HD AUDIO WITH CONTENT PROTECTION (REALTEK ALC1200 AUDIO CODEC) – PREMIUM BLU-RAY AUDIO SUPPORT – SUPPORTS SURGE PROTECTION – PCB ISOLATE SHIELDING – INDIVIDUAL PCB LAYERS FOR R/L AUDIO CHANNEL – GOLD AUDIO JACKS – NAHIMIC AUDIO
EXPANSION SLOTS
PCI	– 1 X PCI EXPRESS 3.0 X1 SLOT
M.2 SOCKET	– 1 X M.2 SOCKET (KEY E), SUPPORTS TYPE 2230 WIFI/BT MODULE
MEMORY
TYPE	DDR4
SLOTS	AMD RYZEN SERIES CPUS (MATISSE) – 2 X PCI EXPRESS X16 SLOTS (PCIE1: GEN4X16 MODE; PCIE3: GEN3 X4 MODE) AMD RYZEN SERIES APUS – 2 X PCI EXPRESS X16 SLOTS (PCIE1: GEN3X16 MODE; PCIE3: GEN3 X4 MODE) – SUPPORTS AMD QUAD CROSSFIREX AND CROSSFIREX™ – 15Μ GOLD CONTACT IN VGA PCIE SLOT (PCIE1)
SUPPORTED MEMORY	– DUAL CHANNEL DDR4 MEMORY TECHNOLOGY – 4 X DDR4 DIMM SLOTS – AMD RYZEN SERIES CPUS (MATISSE) SUPPORT DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & NON-ECC, UN-BUFFERED MEMORY – AMD RYZEN SERIES APUS SUPPORT DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & NON-ECC, UN-BUFFERED MEMORY – SUPPORTS EXTREME MEMORY PROFILE (XMP) MEMORY MODULES – 15Μ GOLD CONTACT IN DIMM SLOTS
MAXIMUM MEMORY	128GB
GRAPHICS
GRAPHICS	– INTEGRATED AMD RADEON VEGA SERIES GRAPHICS IN RYZEN SERIES APU* – DIRECTX 12, PIXEL SHADER 5.0 – SHARED MEMORY DEFAULT 2GB. MAX SHARED MEMORY SUPPORTS UP TO 16GB.** – DUAL GRAPHICS OUTPUT: SUPPORT HDMI AND DISPLAYPORT 1.4 PORTS BY INDEPENDENT DISPLAY CONTROLLERS – SUPPORTS HDMI 2.1 WITH MAX. RESOLUTION UP TO 4K X 2K (4096X2160) @ 60HZ – SUPPORTS DISPLAYPORT 1.4 WITH MAX. RESOLUTION UP TO 5K (5120X2880)@120HZ – SUPPORTS AUTO LIP SYNC, DEEP COLOR (12BPC), XVYCC AND HBR (HIGH BIT RATE AUDIO) WITH HDMI 2.1 PORT (COMPLIANT HDMI MONITOR IS REQUIRED) – SUPPORTS HDR (HIGH DYNAMIC RANGE) WITH HDMI 2.1 – SUPPORTS HDCP 2.3 WITH HDMI 2.1 AND DISPLAYPORT 1.4 PORTS – SUPPORTS 4K ULTRA HD (UHD) PLAYBACK WITH HDMI 2.1 AND DISPLAYPORT 1.4 PORTS – SUPPORTS MICROSOFT PLAYREADY
CONNECTOR & PORTS
HDMI	– 1 X HDMI PORT
DISPLAY PORT (S)	-1 X DISPLAYPORT 1.4
USB (S)	– 1 X OPTICAL SPDIF OUT PORT – 1 X USB 3.2 GEN2 TYPE-A PORT (10 GB/S) (SUPPORTS ESD PROTECTION) – 1 X USB 3.2 GEN2 TYPE-C PORT (10 GB/S) (SUPPORTS ESD PROTECTION) – 4 X USB 3.2 GEN1 PORTS (ASMEDIA ASM1074 HUB) (SUPPORTS ESD PROTECTION) – 2 X USB 2.0 PORTS (SUPPORTS ESD PROTECTION)
LAN PORT (S)	– 1 X RJ-45 LAN PORT WITH LED (ACT/LINK LED AND SPEED LED)
SUPPORTED STORAGE	– 6 X SATA3 6.0 GB/S CONNECTORS, SUPPORT RAID (RAID 0, RAID 1 AND RAID 10), NCQ, AHCI AND HOT PLUG
INTERNAL I/O PORTS	– 2 X ANTENNA MOUNTING POINTS – 1 X PS/2 MOUSE/KEYBOARD PORT – 1 X HDMI PORT – 1 X DISPLAYPORT 1.4 – 1 X OPTICAL SPDIF OUT PORT – 1 X USB 3.2 GEN2 TYPE-A PORT (10 GB/S) (SUPPORTS ESD PROTECTION) – 1 X USB 3.2 GEN2 TYPE-C PORT (10 GB/S) (SUPPORTS ESD PROTECTION) – 4 X USB 3.2 GEN1 PORTS (ASMEDIA ASM1074 HUB) (SUPPORTS ESD PROTECTION) – 2 X USB 2.0 PORTS (SUPPORTS ESD PROTECTION) – 1 X RJ-45 LAN PORT WITH LED (ACT/LINK LED AND SPEED LED) – 1 X CLEAR CMOS BUTTON – HD AUDIO JACKS: REAR SPEAKER / CENTRAL / BASS / LINE IN / FRONT SPEAKER / MICROPHONE (GOLD AUDIO JACKS) – 1 X POWER LED AND SPEAKER HEADER – 2 X RGB LED HEADERS* – 2 X ADDRESSABLE LED HEADERS – 1 X CPU FAN CONNECTOR (4-PIN)* – 1 X CPU/WATER PUMP FAN CONNECTOR (4-PIN) (SMART FAN SPEED CONTROL)** – 4 X CHASSIS/WATER PUMP FAN CONNECTORS (4-PIN) (SMART FAN SPEED CONTROL)*** – 1 X 24 PIN ATX POWER CONNECTOR (HI-DENSITY POWER CONNECTOR) – 1 X 8 PIN 12V POWER CONNECTOR (HI-DENSITY POWER CONNECTOR) – 1 X 4 PIN 12V POWER CONNECTOR (HI-DENSITY POWER CONNECTOR) – 1 X FRONT PANEL AUDIO CONNECTOR – 2 X USB 2.0 HEADERS (SUPPORT 4 USB 2.0 PORTS) (SUPPORTS ESD PROTECTION) – 2 X USB 3.2 GEN1 HEADERS (SUPPORT 4 USB 3.2 GEN1 PORTS) (SUPPORTS ESD PROTECTION)
TPM (TRUSTED PLATFORM MODULE )	– 1 X SPI TPM HEADER
WARRANTY INFORMATION
MANUFACTURING WARRANTY	03 YEARS WARRANTY

ASROCK B550M STEEL LEGEND AMD MOTHERBOARD

KEY FEATURES

MODEL: ASROCK B550M STEEL LEGEND

SUPPORTS 3RD GEN AMD AM4 RYZEN/ FUTURE AMD RYZEN PROCESSORS

SUPPORTS DDR4 4733+ (OC)

6 SATA3, 1 HYPER M.2, 1 M.2

10 POWER PHASE DESIGN, DR. MOS

Description

SPECIFICATION

SUPPORTED CPU

– SUPPORTS 3RD GEN AMD AM4 RYZEN / FUTURE AMD RYZEN PROCESSORS – DIGI POWER DESIGN – 10 POWER PHASE DESIGN

CHIPSET

AMD B550

BIOS

– 256MB AMI UEFI LEGAL BIOS WITH GUI SUPPORT – SUPPORTS “PLUG AND PLAY” – ACPI 5.1 COMPLIANCE WAKE UP EVENTS – SUPPORTS JUMPERFREE – SMBIOS 2.3 SUPPORT – CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP VOLTAGE MULTI-ADJUSTMENT

FORM FACTOR

-MICRO ATX FORM FACTOR: 9.6-IN X 9.6-IN, 24.4 CM X 24.4 CM – 2OZ COPPER PCB

AUDIO

– 7.1 CH HD AUDIO WITH CONTENT PROTECTION (REALTEK ALC1200 AUDIO CODEC) – PREMIUM BLU-RAY AUDIO SUPPORT – SUPPORTS SURGE PROTECTION – PCB ISOLATE SHIELDING – INDIVIDUAL PCB LAYERS FOR R/L AUDIO CHANNEL – GOLD AUDIO JACKS – NAHIMIC AUDIO

EXPANSION SLOTS

PCI

– 1 X PCI EXPRESS 3.0 X1 SLOT

M.2 SOCKET

– 1 X M.2 SOCKET (KEY E), SUPPORTS TYPE 2230 WIFI/BT MODULE

MEMORY

TYPE

DDR4

SLOTS

AMD RYZEN SERIES CPUS (MATISSE) – 2 X PCI EXPRESS X16 SLOTS (PCIE1: GEN4X16 MODE; PCIE3: GEN3 X4 MODE) AMD RYZEN SERIES APUS – 2 X PCI EXPRESS X16 SLOTS (PCIE1: GEN3X16 MODE; PCIE3: GEN3 X4 MODE) – SUPPORTS AMD QUAD CROSSFIREX AND CROSSFIREX™ – 15Μ GOLD CONTACT IN VGA PCIE SLOT (PCIE1)

SUPPORTED MEMORY

MAXIMUM MEMORY

128GB

GRAPHICS

GRAPHICS

CONNECTOR & PORTS

HDMI

– 1 X HDMI PORT

DISPLAY PORT (S)

-1 X DISPLAYPORT 1.4

USB (S)

– 1 X OPTICAL SPDIF OUT PORT – 1 X USB 3.2 GEN2 TYPE-A PORT (10 GB/S) (SUPPORTS ESD PROTECTION) – 1 X USB 3.2 GEN2 TYPE-C PORT (10 GB/S) (SUPPORTS ESD PROTECTION) – 4 X USB 3.2 GEN1 PORTS (ASMEDIA ASM1074 HUB) (SUPPORTS ESD PROTECTION) – 2 X USB 2.0 PORTS (SUPPORTS ESD PROTECTION)

LAN PORT (S)

– 1 X RJ-45 LAN PORT WITH LED (ACT/LINK LED AND SPEED LED)

SUPPORTED STORAGE

– 6 X SATA3 6.0 GB/S CONNECTORS, SUPPORT RAID (RAID 0, RAID 1 AND RAID 10), NCQ, AHCI AND HOT PLUG

INTERNAL I/O PORTS

TPM (TRUSTED PLATFORM MODULE )

– 1 X SPI TPM HEADER

WARRANTY INFORMATION

MANUFACTURING WARRANTY

03 YEARS WARRANTY
